FOKKER DR.1 – HASEGAWA 1:8 (PART 5) Seat & Harness

With the cockpit floor complete I moved on to the seat.

This is made from two pieces of sheet aluminium the back section of which has to be bent to shape around the seat base. The kit parts are secured by bend over tabs which aren’t very realistic so I opted to use CA glue. Initially the coating on the kit parts stopped the glue gaining and purchase at all, but once sanded back to the base aluminium a good joint was obtained. The real seat also had a plywood base so I added one made from 1mm ply which also added to the strength.

P1040412

To simulate fixings for the lap straps I added some brass loops with 1mm nuts glued in place underneath. This is a bit of make-believe on my part as I have been unable to find out exactly how the real straps were secured.

P1040414

P1040415

You can see from the photos that I also added the padding strip around the seat back as required by the kit. In retrospect I wish I hadn’t as it wasn’t there on the real item. However, it’s well fixed and is staying now!

The seat squab was painted a mid brown and then left to bake on the radiator for a few days. It was then detailed with artist’s oils. An initial coat of Burnt Sienna to prepare the surface, then Burnt Umber in the shadow areas and pure white in the highlight areas.

P1040429

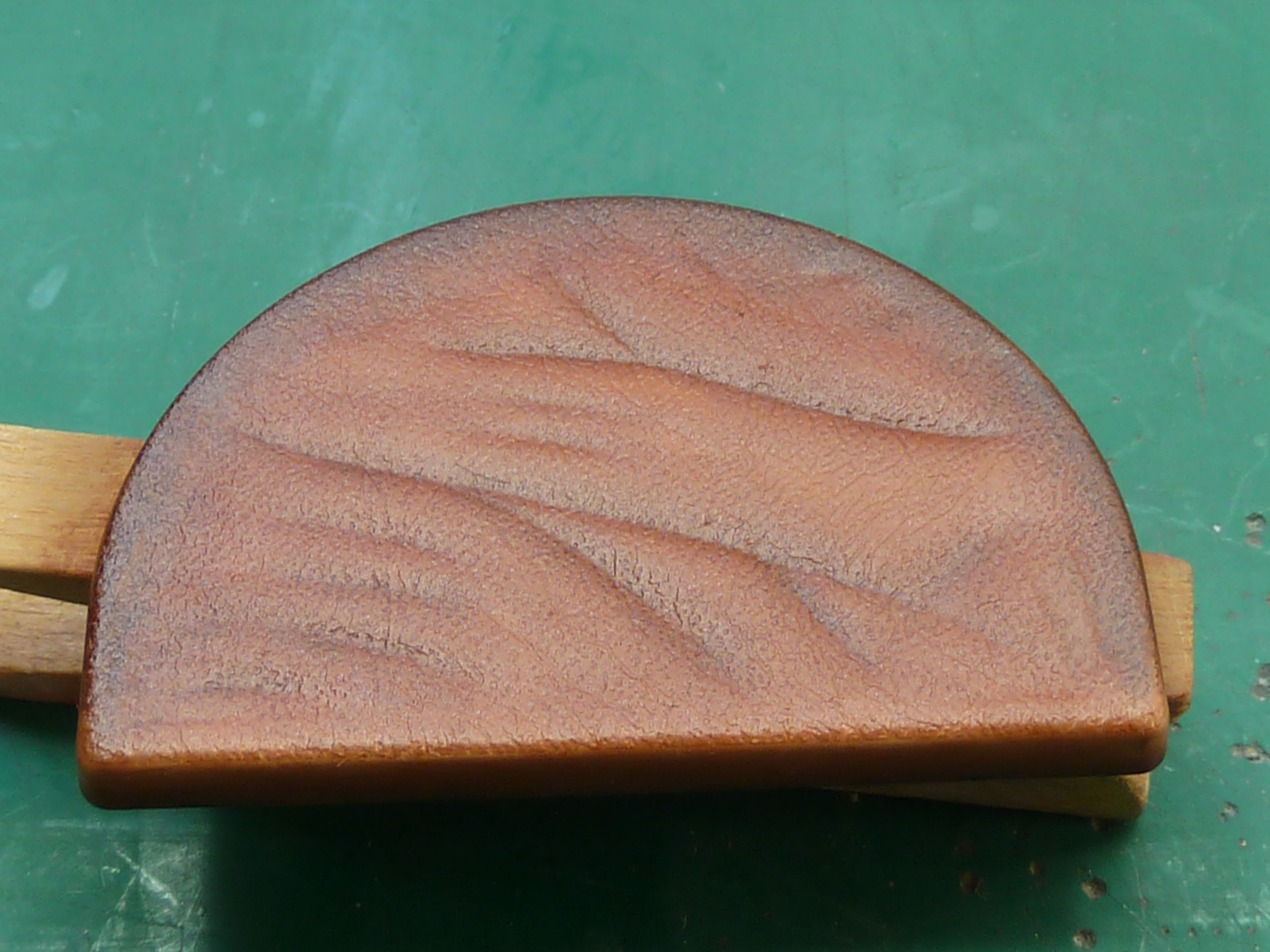

These were then blended together.

P1040431

When I came to fit the squab in to the seat I found it fouled on the brass seatbelt loops, so I had to trim them off flush. Serves me right for not checking before.

Seat belts were made up using Solartex in the same manner as the Camel model earlier and buckles from 0.3 mm al sheet. Adjusters were fashioned from 0.5 mm brass wire.

The style of the harness was guessed from various photos, the first attempt looking like this.

P1040439

P1040440

However, a moment’s reflection told me that there is no way the harness would actually be stitched into the aircraft as I’d done it and also the cross piece on the straps would likely garotte anyone who used it. So a Mk.II harness was designed with a more believable fixing method and no cross piece.

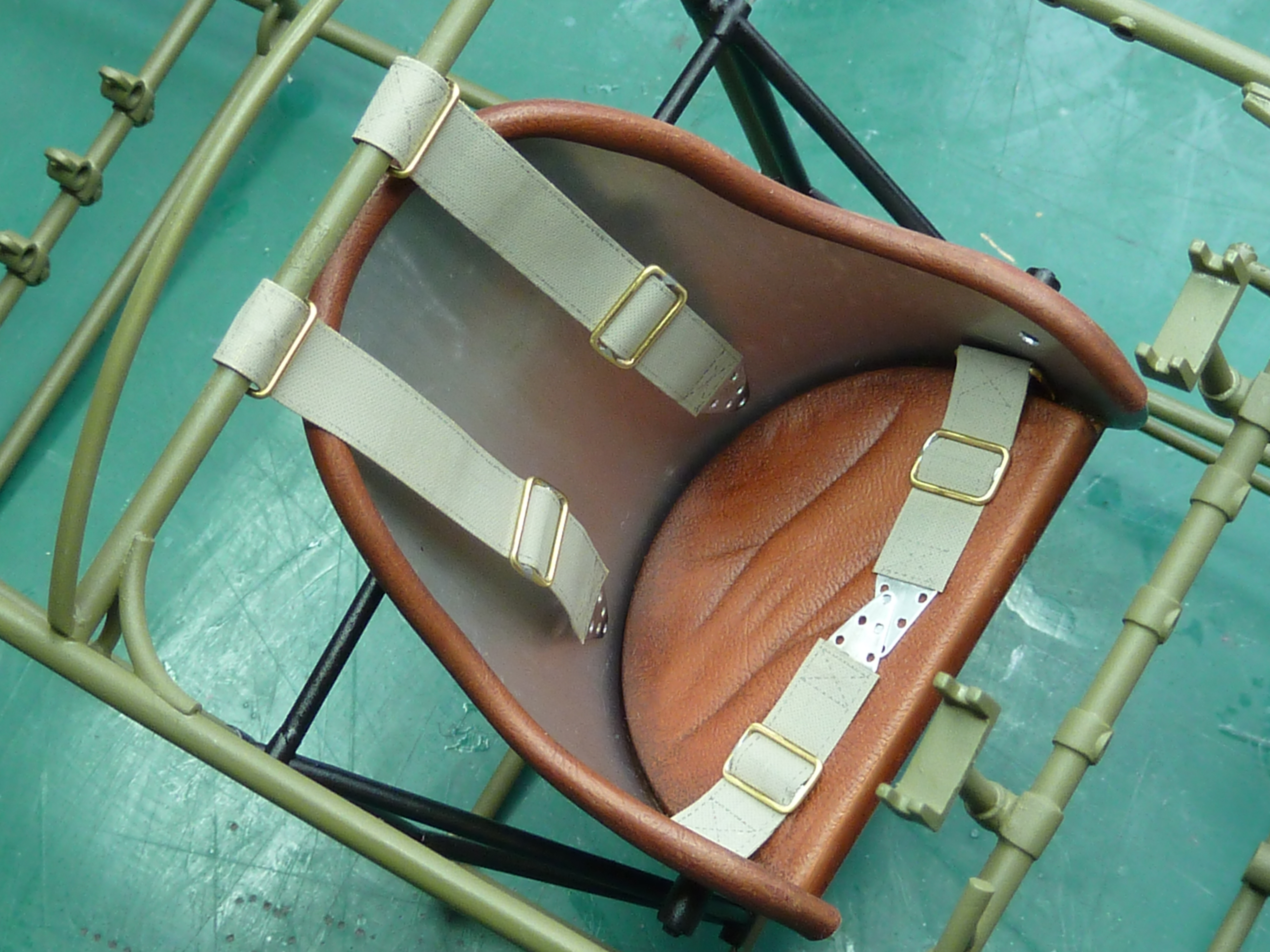

P1040445

and that is what I have gone with. I know it’s not completely accurate though, but I’m relatively happy with the finished appearance.

Oh, and the last two pictures nicely demonstrate the change in frame colour from steel to the current green.
